The Return of Rammed Earth to San Antonio

One of San Antonio's beloved historic structures, The Southwest School of Art, was designed and built in 1848 by French-trained architect named Francois Giraud using a technique called pise de terre. This technique was a rammed earth process compressing rock, straw and native clay by hand. While adobe buildings are not uncommon in San Antonio in structures dating back to that era, rammed earth is....until today!

Phase II of the 3050 Eisenhauer project builds on the success of Phase I's use of compressed earth blocks by using a different means of placement, rammed earth, and a material mix design leaning heavily on native limestone.

Engineered limestone material is placed in forms

Engineered limestone material is placed in forms

With an 18 inch thick wall assembly consisting of tightly compacted engineered limestone, the buildings are designed for outstanding energy performance as well as providing excellent sound attenuation between units.



Ancient techniques for earthen construction meets modern assembly and code compliance

Ancient techniques for earthen construction meets modern assembly and code compliance

With a healthy dose of innovation, an attention to detail for code compliance and opportunities to fuse the ancient with the modern, 3050 Eisenhauer looks to provide superior dwellings at market rates for both construction and rental.

Each project begins with mock ups built to spec for research and testing

Each project begins with mock ups built to spec for research and testing

Erosion testing being conducted according to ASTM standards to quantify durability or its erosion index

Erosion testing being conducted according to ASTM standards to quantify durability or its erosion index

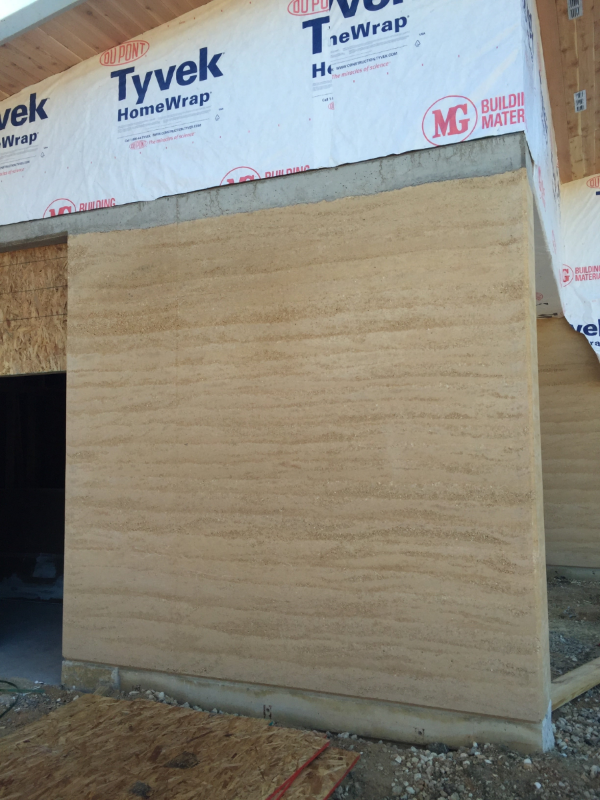

Completed wall at phase II of the 3050 Eisenhauer project

Completed wall at phase II of the 3050 Eisenhauer project

A 3/4 inch chamfered control joint helps to minimize any potential stress cracking, a risk with longer monolithic walls

A 3/4 inch chamfered control joint helps to minimize any potential stress cracking, a risk with longer monolithic walls

Looking forward to welcoming tenants Spring of 2016!

Looking forward to welcoming tenants Spring of 2016!
